Model: | ZL180PX |
Bag size | Laminated film |
Average speed | 20-100 bags/min |
Packing film width | 120-320mm |
Bag size | L 50-170 mm W 50-150mm |
Film material | PP.PE.PVC.PS.EVA.PET.PVDC+PVC.OPP+Complex CPP |
Air consumption | 6kg/m² |
General power | 4kw |
Main motor power | 1.81kw |
Machine weight | 350kg |
Power supply | 220V 50Hz.1Ph |

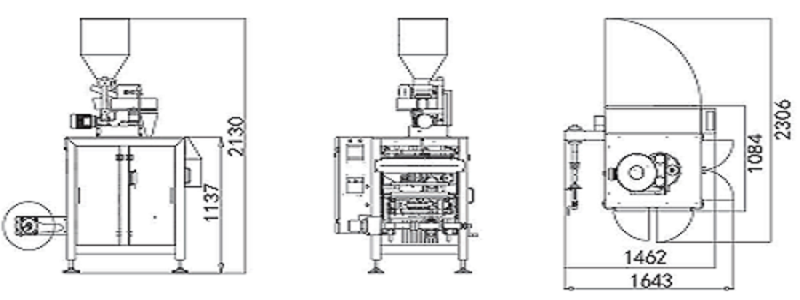

Outside dimensions | 1350mm*1000mm*2350mm |
1. The whole machine use 3 servo control system, running stability, high accuracy, fast speed, lower noisy.
2. It adopt touch screen operate, more easy, more intelligent.
3.Various packing type: pillow bag, punch hole bag, connect bags etc.
4. This machine can equip with multi-head weigher , electrical weigher, volume cup etc.
Z TYPE CONVEYOR
● Features
The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc. For the lifting machine,
the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
● Features
The machine can send the packed finished bag to after-package detecting device or packing platform.
● Specification
Lifting height | 0.6m-0.8m |
Lifting capacity | 1 cmb/hour |
Feeding speed | 30mminute |
Dimension | 2110×340×500mm |
Voltage | 220V/45W |
