Factory source Box Cartoning Machine - AUTOMATIC POUCH PACKING MACHINE GDR100K SOONTRUE RED DATES PACKAGING MACHINE – Soontrue Detail:

Model:	GDR-100K
Packing speed	6-45 Bags/min
Bag size	L120-400mm W150-300mm
Packing formart	Bags (flat bag, stand bag, zipper bag, hand bag, M bag etc irregular bags)
Power type	1 PH 220V, 50Hz
General power	3.5kw
Air consumption	5-7kg/cm² 500L/min
Packing material	Single layer PE, PE complex film etc
Machine weight	1000kg
Outside dimensions	2300mm1600mm1600mm

1. The machine with ten-station structure, running by PLC, big touch screen centralized control, easy operation;

2. Automatic fault tracking and detection device, to achieve no bag opening, no filling and no sealing;

3. Mechanical empty bag tracking and detection device, to achieve no bag opening, no filling and no sealing;

4. The main drive system adopts variable frequency speed control, full CAM drive, running smoothly, low failure rate;

5 The design of the whole machine conforms to GMP standard and has passed CE certification.

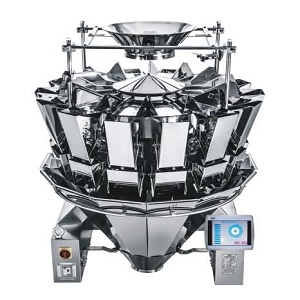

10 multi-head scales

● Features
1. One of the most economic&stable multi-head weigher in the world the best cost-effective
2. Stagger Dump avoid bigger items pile up
3. Individual feeder control
4. User friendly touch screen equipped with multiple language
5. Compatible with single packaging machine, rotary bagger, cup/bottle machine, tray sealer etc.
6. 99 preset program for multiple tasks.

Item	Standard 10 multi head weigher
Generation	2.5G
Weighing range	15-2000g
Accuracy	±0.5-2g
Max speed	60WPM
Power supply	220V , 50HZ, 1.5KW
Hopper volume	1.6L/2.5L
Monitor	10.4 inches color touch screen
Dimension (mm)	143610861258
Dimension (mm)	143610861388

13_副本

Z-TYPE CONVEYOR

● Features

The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc. For the lifting machine,

the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.

● Specification

Model	ZL-3200 HD
Bucket hopper	1.5 L
Capacity(m³h)	2-5 m³h
Bucket material	PP Food Gradewe have developed dozens of bucket molds ourselves
Bucket style	Slippy bucket
Framework material	Sprocket: Mild steel with chrome coatingAxis: Mild steel with nickel coating
Dimension	Machine height 31001300 mmStandard export case 1.91.3*0.95
Optional parts	Frequency converterSensorPan for leakage product
The material and brand of the internal parts of the machine can be specified , and it can be be selected according to the product and service environment of the machine

SUPPORTING PLATFORM

● Features

The supporting platform is solid will not affect the measurement accuracy of the combination weigher.

In addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.

● Specification

The size of the supporting platform is according to the type of the machines.

● Features

The machine can send the packed finished bag to after-package detecting device or packing platform.

● Specification

Lifting height	0.6m-0.8m
Lifting capacity	1 cmb/hour
Feeding speed	30mminute
Dimension	2110×340×500mm
Voltage	220V/45W

003
